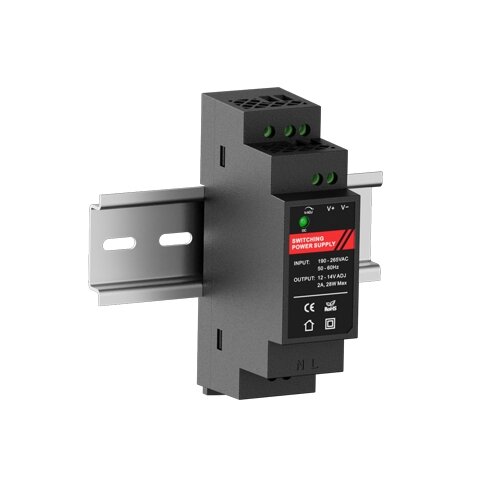

SF PSU1202DINBAT DIN Powe supply 12VDC, 2A, SaFi

  • SF PSU1202DINBAT DIN Powe supply 12VDC, 2A, SaFi

    Code: 06166
  • INPUT
    Voltage Range - 190 - 265VAC
    Frequency Range - 50 - 60Hz

    OUTPUT
    Voltage (AC Mode) - 12-14V ±2%
    Voltage (Battery Mode) - Same as battery voltage
    Rated Current - 2A
    Rated Power (Max.) - 28W (with maximum 250mA charging current)
    Efficiency (Typ.) - >86%
    Ripple & Noise - <120mVp-p
    Output Channel - 1 Channels

    CHARGING
    Voltage - 10-13.8V ±2%
    Current - 250mA (max.) Constant voltage mode, charge current decreases when battery voltage increases.

    PROTECTION
    Input - 2A / 250VAC fuse
    Overload - Hiccup mode, recovers automatically after fault condition is removed.
    Over Voltage - Hiccup mode, recovers automatically after fault condition is removed.
    Battery Low Voltage - 10V ±2% PSU shuts down until AC power is reconnected
    Short Circuit - Hiccup mode, recovers automatically after fault condition is removed.

    ENVIRONMENT
    Temperature - Working: -20 - 45℃ - Storage: -30 - 80℃
    Humidity - Working: 20 - 80%RH - Storage: 10 - 90%RH

    LED INDICATOR
    Green - On - AC supplies
    Red - On - Battery supplies

    SAFETY & EMC
    EMC Standards - EN 55022: 2010, EN 55024: 2010, EN 61000-3-2: 2014, EN 61000-3-3: 2013
    LVD Standards - EN 62368-1-2014-A11-2017

    PLASTIC BOX & PACKING
    Default Plastic Box - 27mm x 93mm x 56mm
