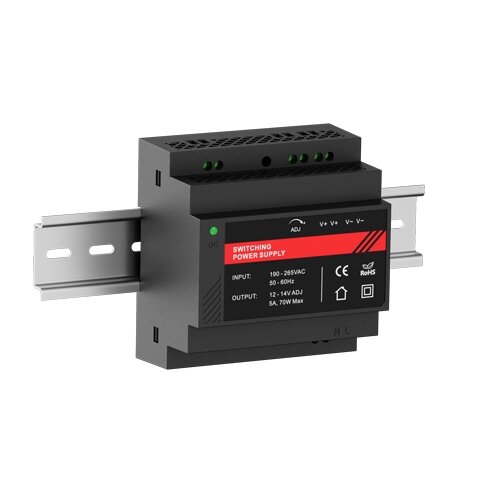

INPUT
Voltage Range - 190 - 265VAC
Frequency Range - 50 - 60Hz

OUTPUT
Voltage (AC Mode) - 12-14V ±2%
Rated Current - 5A
Rated Power (Max.) - 70W
Efficiency (Typ.) - >86%
Ripple & Noise - <120mVp-p
Output Channel - 2 Channels

PROTECTION
Input - 2A / 250VAC fuse
Overload - 6A, ±5%, Hiccup mode, recovers automatically after fault condition is removed.
Over Voltage - Hiccup mode, recovers automatically after fault condition is removed.
Short Circuit - Hiccup mode, recovers automatically after fault condition is removed.

ENVIRONMENT
Temperature - Working: -20 - 45? - Storage: -30 - 80?
Humidity - Working: 20 - 80%RH - Storage: 10 - 90%RH

LED INDICATOR
Green - On - AC supplies

SAFETY & EMC
EMC Standards - EN 55022: 2010, EN 55024: 2010, EN 61000-3-2: 2014, EN 61000-3-3: 2013
LVD Standards - EN 62368-1-2014-A11-2017

PLASTIC BOX & PACKING
Default Plastic Box - 89.5mm x 93mm x 56mm
